Tel-O-Graph GSM

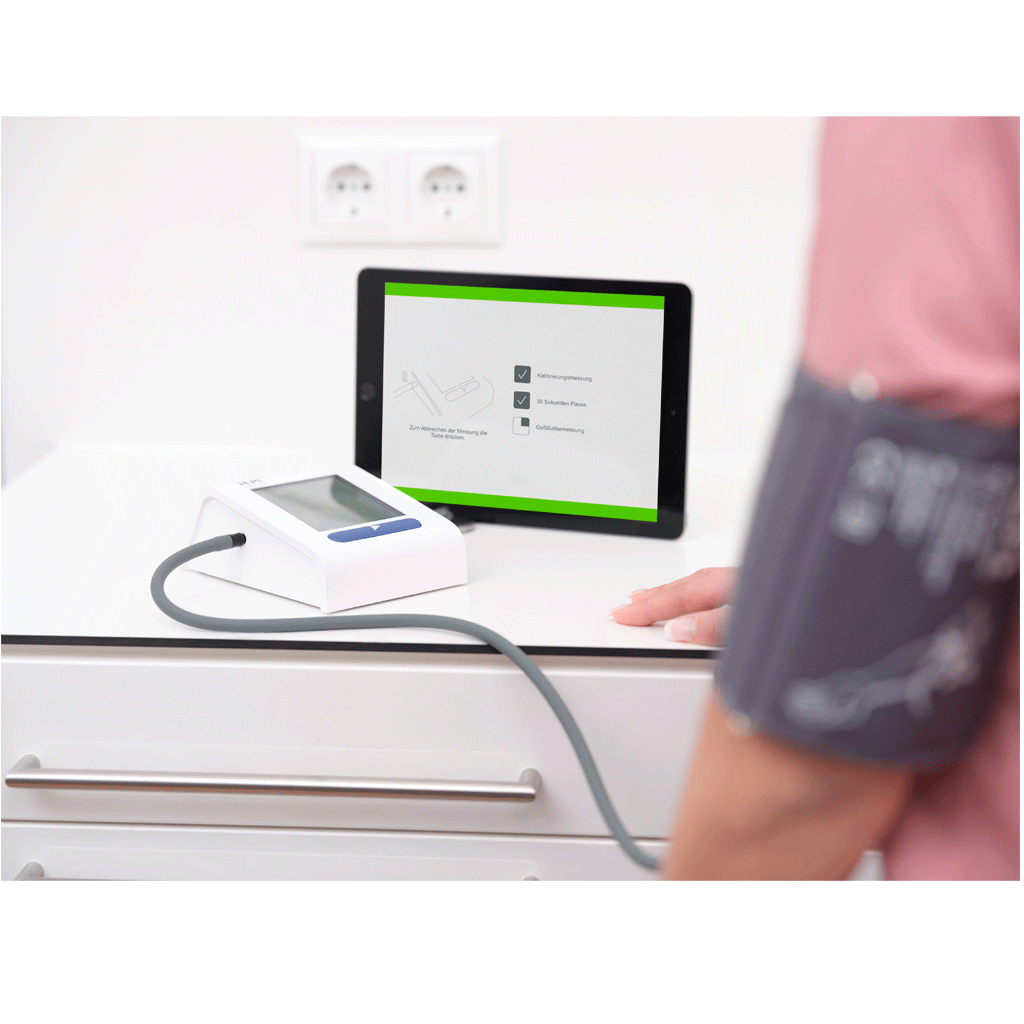

The Tel-O-Graph® GSM is the most innovative and convenient solution available for digital blood pressure adjustment and continuous follow-up of blood pressure readings.​
​ The user normally uses the system to measure their own blood pressure twice or three times daily from the comfort of home. Following measurement, the measured values are encrypted and automatically sent using mobile communication signals from the Tel-O-Graph® GSM to the Hypertension Management Software (HMS CS) or the telemedicine platform, in which it can be managed at the click of a button. The measurement data can also be transferred via GDT or HL-7 to the practice administration software or hospital information system from the HMS CS. The measured values are clearly set out in graphic form, and combined to create automatic reports. This means that the treating doctor or medical professionals have the option of reliably monitoring blood pressure readings with minimal effort at any time, or of adjusting treatment. Measurement data can also be forwarded directly to our customers’ specific in-house databases.​

  • Why have it?
  • Technical data​
  • System benefits​
  • Accesories
Why have it?

Specialists in cardiology, hypertensiology, general and internal medicine​

  • Significantly better treatment results​
  • Substantial time savings for doctor and patient​
  • Treatment adjustment at a glance thanks to automated status reports​

​Clinical Research & Care projects​

  • Minimal coaching/support needed thanks to absolute ease of use and reliable data transmission​
  • Compliance with strict data security standards​
  • Individual association with project or study-specific needs​

Technical data​

Caracteristica Valor
Dimensions​ L 150mm x B 109mm x H 56mm​
Display​ 70 mm x 72 mm, Character height 20 mm​
Weight​ 325 g​
Technique​ Oscilometric​
NIBP Accuracy​ Validated according to ISO 81060-2 and BHS (A/A Grading)​
Systilic range​ 30-290 mmHg​
Dyastolic range​ 30-240 mmHg​
Pulse Rate range​ 30-240 BPM (Beats per min)​
Pulse Rate Accuracy​ ±2% or ±3 BPM, whichever is greater​
Transducer Accuracy​ ±3 mmHg over full range in operating conditions​
Operating Modes​ manual​
Operating temperature​ +5°C to 40°C​
Operating humidity​ 15% to 93% RH, non condensing​
Storage temperature​ -25°C to +70°C​
Storage humidity​ Up to 90% RH, non-condensing​
Operating voltage​ 4 -6 VDC (4 x AA NiMH or Alkaline)​
Power consumption​ Using 5 VDC Nominal​
Storage capacity​ 15 measurements​
Communication​ Bluetooth 2.1 + EDR or infrared,​
Transmission output power​ Class1 (100mW)​

System benefits

  • Reliable data thanks to maximum measurement precision (BHS (A/A) grading) of the approved medical product.​
  • User-friendly thanks to one-button operation, large display and fast blood pressure measurement without unpleasant effects (AFL: Auto-Feedback Logic).
  • Direct and encrypted transmission of measured values from home to the doctor using the integrated SIM card and GSM module.
  • Large measurement storage (350 measurements).

Accesories​

  • OD cuff S (20-24 cm).
  • OD cuff M (24-32 cm).
  • OD cuff L (32-38 cm).
  • OD cuff XL (38-55 cm).​
  • Cotton sleeves (50 pcs.).​
  • Set pouch, printed.
  • Batteries, AA, alkaline (4 pcs).
  • USB bluetooth adapter.
  • HMS CS installation CD.
